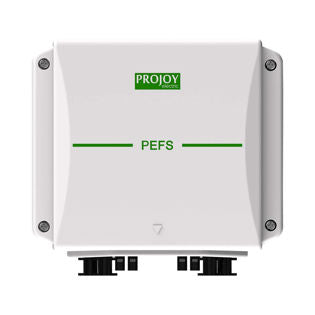

Projoy Firefighter Safety Switch 4 pole 2 Strings
/
Tax excluded. Shipping calculated at checkout
The Projoy 4-Pole Firefighter Safety Switch provides fast and reliable DC isolation for solar PV systems during fire or emergency situations. Designed for two-string PV arrays, it instantly disconnects the DC power supply when AC power is lost or when triggered by the building’s emergency shutdown system.
Built with arc-suppression chambers, flame-retardant housing, and UV-resistant materials, this unit ensures maximum operator safety and long-term reliability in both residential and commercial installations.
Compliant with IEC 60947-3 and CE standards, the Projoy Firefighter Switch meets all Irish and EU fire-safety requirements, helping protect both property and emergency personnel.
✅ Key Features:
- 4 Poles – Supports up to 2 PV strings
- Rapid DC isolation on loss of AC power or emergency trigger
- Rated Voltage: up to 1000 V DC
- Rated Current: 32 A per pole
- Automatic / remote shutdown compatible with inverter signal or fire alarm
- IP66 weatherproof & UV-resistant enclosure
- Flame-retardant, arc-suppressed internal design
- Certified to IEC 60947-3 / CE / TÜV standards
- Ideal for rooftop, domestic, and small commercial PV systems
Specification |
Details |
Brand |
Projoy Electric |
Function |
Firefighter Rapid Shutdown / DC Isolation |
Poles |
4 Pole (2 Strings) |
Rated Voltage |
1000 V DC |
Rated Current |
32 A per pole |
Operation |
Automatic / Remote Trigger |
Protection Rating |
IP66 (Weatherproof) |
Enclosure Material |
Flame-Retardant & UV-Resistant Plastic |
Standards |
IEC 60947-3 / CE / TÜV Certified |
