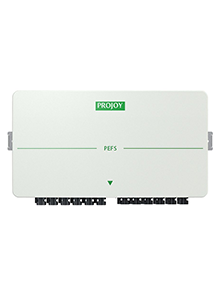

Projoy Firefighter Safety Switch 10 Pole 5 Strings
/
Tax excluded. Shipping calculated at checkout
The Projoy Firefighter Safety Switch (10 Pole / 5 String) is a smart DC disconnection device designed to instantly isolate the DC power from solar panels in the event of fire, maintenance, or emergency situations. It provides rapid shutdown protection for installers, emergency responders, and property owners — ensuring compliance with fire safety standards and reducing electrical hazards on rooftops.
This advanced isolator automatically disconnects all PV strings when AC power is lost or when triggered by the building’s emergency system. Each unit controls up to five PV strings (10 poles total), making it ideal for commercial and industrial solar PV installations.
Built with high-quality arc-suppression components, flame-retardant housing, and an IP66-rated weatherproof enclosure, the Projoy Firefighter Switch ensures maximum safety, reliability, and long service life.
✅ Key Features:
• 10 Poles – Supports up to 5 PV strings
• Rapid DC isolation in case of fire or emergency
• Automatic shutdown when AC power is cut
• Rated voltage: up to 1000V DC
• Rated current: 32A per pole
• Remote shutdown signal compatible with inverter or building fire alarm
• IP66 weatherproof & UV-resistant enclosure
• Flame-retardant and arc-suppressed design
• Complies with IEC 60947-3 and CE safety standards
• Ideal for rooftop, commercial, and industrial systems
Specification |
Details |
Brand |
Projoy Electric |
Function |
Firefighter Rapid Shutdown / DC Isolation |
Poles |
10 Pole (5 Strings) |
Rated Voltage |
1000V DC |
Rated Current |
32A per pole |
Operation |
Automatic / Remote Trigger |
Protection Rating |
IP66 (Weatherproof) |
Enclosure Material |
Flame-Retardant, UV-Resistant Plastic |
Standards |
IEC 60947-3 / CE Certified |
