MC4 Connector Pair
MC4 Connector Pair

Midland Battery Centre

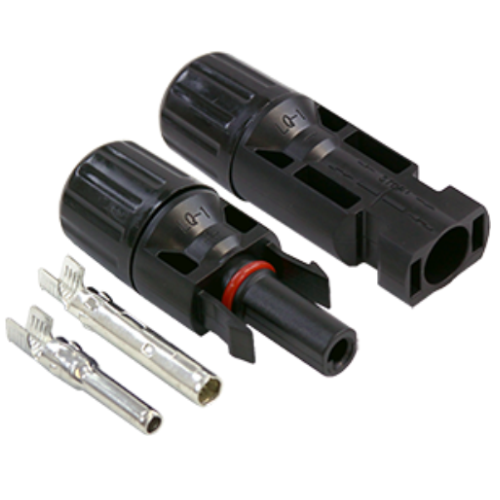

MC4 Connector Pair

€3,00 EX VAT

Tax excluded. Shipping calculated at checkout

The MC4 Solar Connector Pair provides a reliable, waterproof connection between solar panels, extension leads, and inverters. Designed for quick, secure, and tool-assisted assembly, these connectors are the industry standard for solar PV systems worldwide — ensuring safe and efficient DC power transmission.



Built with high-quality UV-resistant materials and silver-plated copper contacts, MC4 connectors guarantee low contact resistance, high current capacity, and long-term durability even in harsh outdoor conditions.



Each set includes 1 x Male and 1 x Female connector, suitable for use with 4mm² and 6mm² solar PV cables.



Key Features:

1 x Male + 1 x Female connector (pair)

Rated Voltage: 1500V DC

Rated Current: up to 30A

IP67 Waterproof protection

Suitable for 4mm² & 6mm² PV cables

Locking mechanism for secure connection

UV & weather resistant housing

Low contact resistance <0.5mΩ

TÜV & IEC Certified



Specification

Details

Connection Type

MC4 Male & Female Pair

Conductor Size

4mm² - 6mm²

Rated Voltage

1500V DC

Rated Current

Up to 30A

Contact Material

Silver-Plated Copper

Insulation Material

PPO (UV-Resistant Plastic)

Protection Level

IP67 (Waterproof & Dustproof)

Operating Temperature

-40°C to +90°C

Standards

TUV / IEC 62852 Certified

MC4 Connector Pair

€3,00
