Dyness BF100-C100 - 100KWH Battery Cabinet High Voltage
/
Tax excluded. Shipping calculated at checkout

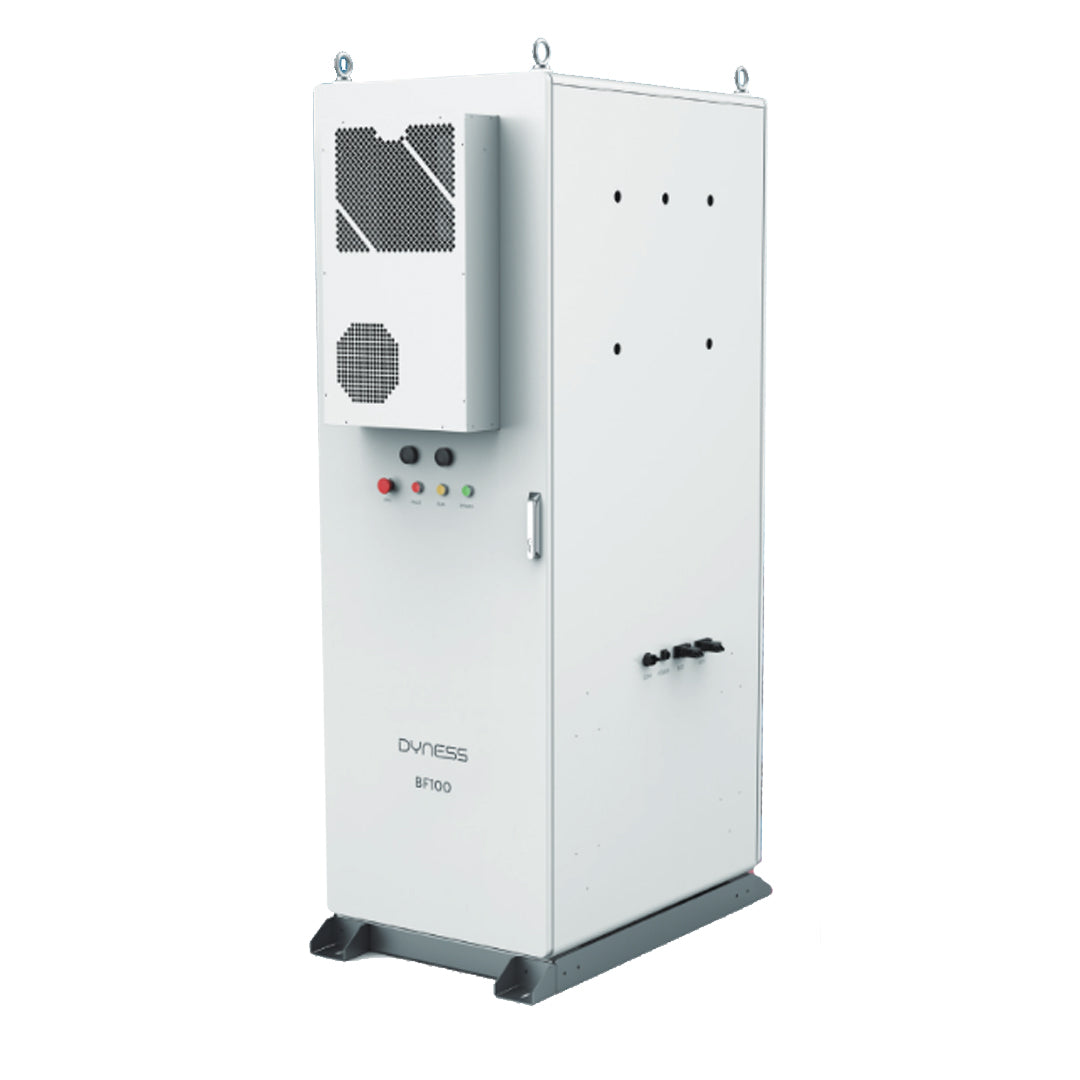

Dyness BF100-C100 — 100 kWh Outdoor Battery Cabinet
The Dyness BF100-C100 is a high-voltage 100 kWh outdoor battery cabinet engineered for commercial, agricultural, and industrial energy-storage systems.
Built on proven LiFePO₄ (lithium-iron-phosphate) technology, it delivers superior safety, efficiency, and longevity, making it an ideal choice for solar-PV integration, peak-shaving, backup power, and micro-grid applications.
With a modular DC architecture and built-in hybrid-inverter interface, the BF100-C100 provides seamless expansion and reliable power conversion for medium-to-large energy projects.
Key Features
• 100 kWh usable capacity in a single outdoor-rated cabinet
• High-efficiency design (≥ 94%) for optimal charge/discharge performance
• Air-cooled temperature control with intelligent monitoring
• Three-stage protection system — active exhaust + passive explosion-proof structure
• IP55 ingress protection and C3/C5 anti-corrosion rating for harsh environments
• Supports Ethernet / 4G / RS485 communication for remote monitoring
• Touchscreen interface for simple setup and diagnostics
• Wall-mounted hybrid inverter compatible (12–50 kW range)
⸻
🌍 Ideal Applications
• Office parks and commercial buildings
• Agricultural and farm energy systems
• EV charging stations
• Light-industrial and logistics hubs
• Backup power and load-shifting projects
⸻
🔋 Benefits
• Maximise solar-PV self-consumption
• Reduce peak-time electricity bills
• Gain energy independence and backup protection
• Scalable modular configuration for future expansion
⸻
📊 Technical Specifications — Dyness BF100-C100
|
Parameter |
Specification |
|
Battery Type |
LiFePO4 (Lithium Iron Phosphate) |
|
Nominal Capacity |
100 kWh |
|
Rated Current |
140 A |
|
Max. Current |
160 A |
|
Voltage Range |
324.8V “ 403.2 V DC |
|
Configuration |
1P16S - 7 PACK / Cluster |
|
Efficiency |
94 % (TBD) |
|
Cooling Method |
Intelligent Air-Cooling |
|
Noise Level |
65 dB |
|
Operating Temperature |
20°C to +50C (derating > 45°C) |
|
Humidity Range |
0-95 % RH (non-condensing) |
|
Ingress Protection |
IP55 |
|
Anti-Corrosion Grade |
C3 / C5 |
|
Fire Protection |
Aerosol (Perfluorohexanone optional) |
|
Communication Interfaces |
Ethernet / 4G / RS485 |
|
Display |
Integrated Touchscreen |
|
Altitude Limit |
3000 m (derating > 2000 m) |
|
Approx. Weight |
1300 ± 100 kg |
|
Dimensions (W × D × H) |
725 mm x 1224 mm x 2258 mm |
|
Air-Conditioner Power |
2 kW (cooling) / 1 kW (heating) |
|
Certification |
CE Compliant |
