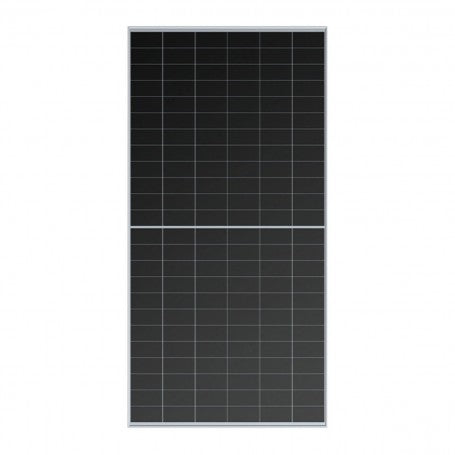

Aiko Stellar 645W Silver Frame

Aiko N-Type ABC Solar Module – 645W

Award-Winning Innovation & Design

• Winner of the 2023 Intersolar Innovation Award
• 2023 Red Dot Design Award recipient
• Recognized for ESG Transparency in 2024

Market-Leading EfficiencY

• Rated Power: 645W
• Module Efficiency: 23.90% — No.1 in the market
• Best-in-class temperature coefficient: -0.26%/°C (as per CEA PV Tech test report)

Advanced Performance Features

• Cell-Level Partial Shading Optimization – Only available in Aiko’s ABC modules, ensuring high output even under partial shading from dirt, trees, or clouds.
• Micro-Crack Resistance – Unlike conventional modules, Aiko N-Type ABC panels are designed to resist micro-cracks that degrade performance over time.
• No Busbar, Sleek All-Black Appearance – Enhances both aesthetics and efficiency.
• High Temperature Tolerance for Fire Safety

Technical Specifications

• Dimensions: 2382 x 1134 x 30 mm
• Weight: 33.5 kg
• VMPP: 45.20 V
• IMPP: 14.27 A
• Isc: 15.00 A
• Voc: 53.90 V
• Temperature Coefficient (Pmax): -0.26%/°C
• Connector Type: AIKO-01C (Note: Not MC4)
• Cable Length: Short cable format

Warranty

• Product Warranty: 15 Years
• Performance Warranty: 30 Years
