4mm Solar PV DC Cable - (100m Drum)
/
Tax excluded. Shipping calculated at checkout
4mm Solar PV DC Cable – 100m Drum (Red & Black Options)
The 4mm² Solar PV DC Cable is specifically designed for connecting solar panels to inverters, charge controllers, and other balance-of-system components. Engineered for high efficiency, durability, and long-term outdoor use, this cable ensures maximum power transmission with minimal loss across your solar PV system.
Manufactured from tinned copper conductors and UV-resistant, double-insulated sheathing, it provides excellent resistance to heat, cold, oil, and abrasion — making it ideal for residential, commercial, and industrial solar installations.
Compatible with MC4 connectors and compliant with IEC 62930 and EN 50618 standards, this premium solar cable guarantees safe, reliable performance in all weather conditions.
✅ Key Features:
- Conductor Size: 4mm² (Single Core)
- Rated Voltage: 1500V DC
- Temperature Range: –40°C to +90°C
- UV, ozone, and weather-resistant outer sheath
- Suitable for indoor & outdoor installation
- Compatible with MC4 and similar PV connectors

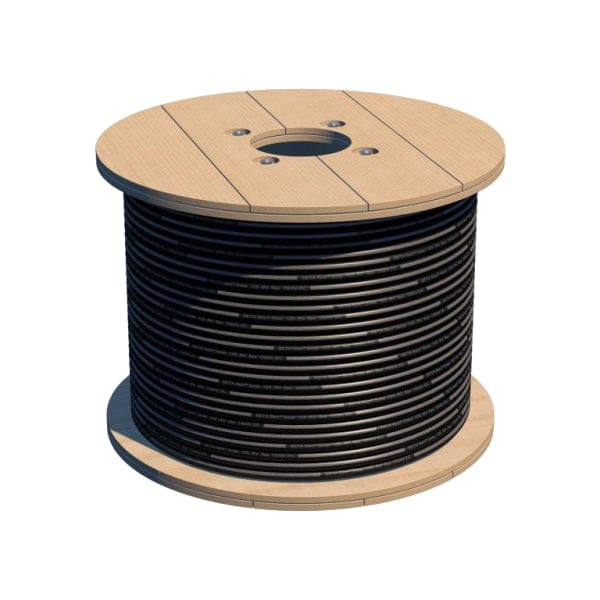

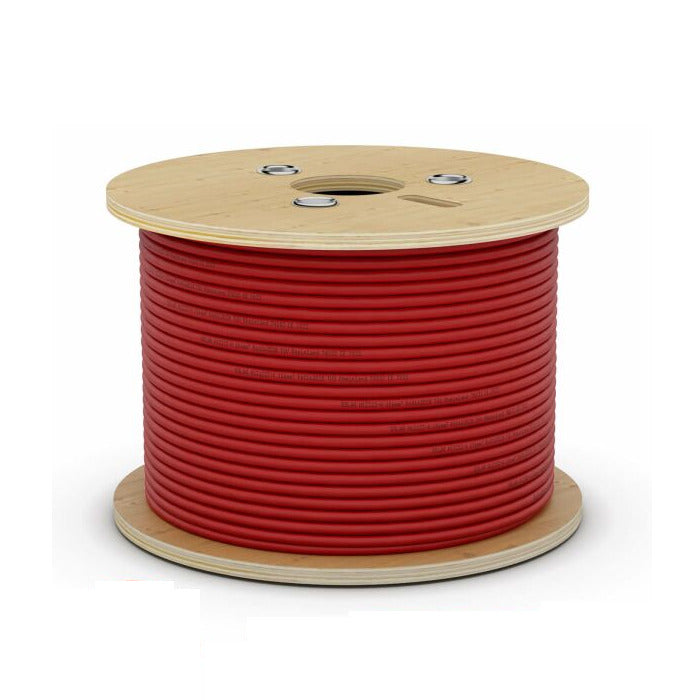

- Supplied in 100m drum (available in Red or Black)
- Certified to TÜV & IEC standards
Specification |
Details |
Conductor Material |
Tinned Copper |
Cross Section |
4mm² |
Voltage Rating |
1500V DC |
Temperature Range |
-40°C to +90°C |
Insulation Material |
XLPE (Cross-Linked Polyethylene) |
Outer Sheath |
UV & Weather Resistant |
Standards |
EN 50618 / IEC 62930 / TV Certified |
Length |
100 Metres (Drum) |
Colour Options |
Red / Black |
Application |
Solar PV DC Wiring, Roof-Top & Ground-Mount Systems |
