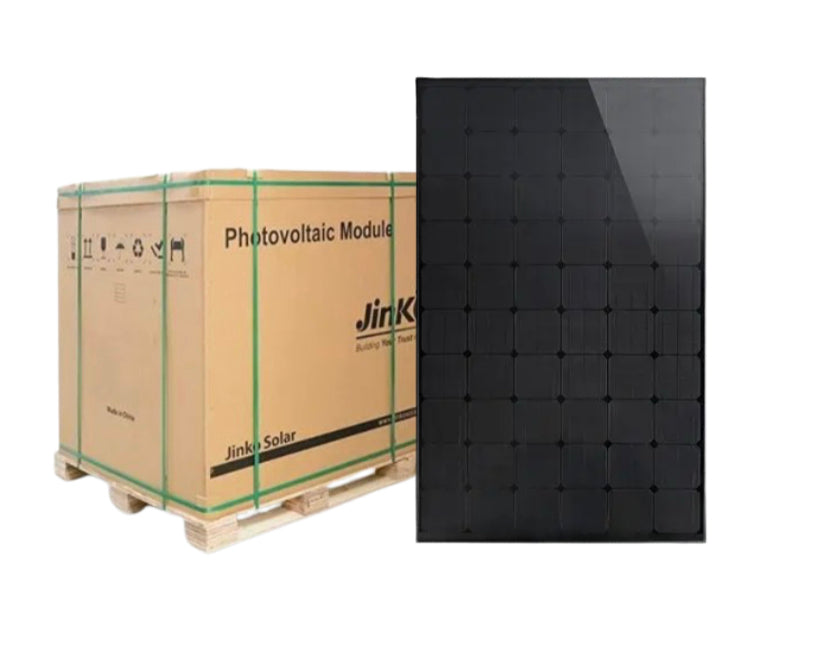

Pallet 36 x 435W Jinko Tiger Neo 54 Cell N-type All Black

Pallet 36 x 435W Jinko Tiger Neo 54 Cell N-type All Black

Regular price €3.940,42 EUR
Regular price Sale price €3.940,42 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

PRICE INCLUDES VAT
€3204 EX VAT

€89 Per Panel

The Jinko Tiger NEO N-Type is a powerful 435W solar module that uses N-type technology and monocrystalline cells. The super multi-busbar technology is employed by the solar cells. This results in a 50% reduction in the electrical transmission path, efficient loss reduction due to microcracks, and improved cell efficiency. The Hot 2.0 technology is used in the module's manufacturing.

Use of the Jinko solar module is permitted under wind and snow loads between 2400 and 5400 PA. Certified and has a strong prayer defense against ammonia and salt. Its 3.2 mm thick, anti-reflection coated front glass is iron-armed and has been toughened, allowing for exceptional light penetration. An anodized aluminum alloy makes up the frame.

In HOT 2.0 cells, the oxide layer and the support selective lamination of microcrystalline silicon-thin layers on the back update the micro-nano tunnels through the effective passivation contact technology. This sophisticated structure improves electrical conductivity and passivation performance, raising the cell's efficiency and power generating capacity. The N-Type Hot2.0 cell's maximum efficiency in mass production is more than 21%, and it has a wide range of potential applications soon.

Technical specifications

Performance (pmax): 435wp
Tension (VMP): 32.59 V
Max. Electricity (IMP): 13.35 a
Limitation voltage (VOC): 39.16 V
Short circuit current (ISC): 13.80 a
Cell efficiency: 21.77%
Operating temperature: -40 ° C - +85 ° C
Max. System voltage: 1000/1500VDC (IEC)
Cell type: N-type monocrystalline
Number of cells: 108 (6 x 18)
Weight: 22 kg
Dimensions: 1762 x 1134 x 30 mm
Protection type connection box: IP68
Frame color: black
